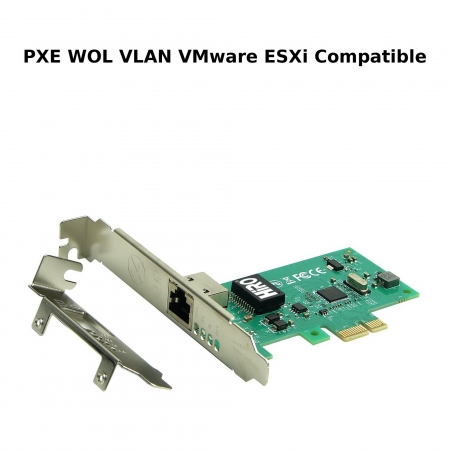

HiRO H50370 Intel® 82574L PCIe x1 Gigabit Network Adapter Windows 11 10 8.1

HiRO H50370 Intel® 82574L PCIe PCI Express PCI-E x1 Gigabit Ethernet Network Adapter provides a pathway from legacy PCI/PCIx designs to higher performing PCIe-based designs. These single-port Controllers use a PCIe one lane (x1) interface operating at 2.5 GHz. The Intel 82574L Gigabit Ethernet Controllers provide fully integrated Gigabit Ethernet Media Access Control (MAC) and Physical-Layer (PHY) capabilities that can be configured for either 1000 Mb/s or 10/100 Mb/s modes of operation. Some optional PCIe extensions are also supported in the Controllers to enhance platform capabilities for specific usage modes. Each Controller provides MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab). The Intel 82574L also enables a quick migration from custom interconnects to Ethernet.

HiRO - Your Reliable Connection!!


Features and Benefits

• PXE WOL VLAN VMware ESXi Compatible

• Windows 11 10 plug n play, no driver installation needed
• High-performance, low-cost, PCI Express* 10/100/1000 Ethernet Connection
• Fast Ethernet or Gigabit Ethernet network  connectivity for single-core and multi-core CPU designs
• Low power: <710mW in GbE mode and <300mW in 10/100 mode
• Support for hardware-based time stamping of IEEE 1588 and 802.1as packets enabling high-precision time synchronization over Ethernet

Chipset Specification

• Intel® 82574L Gigabit Ethernet Controller: High performance and reliability; low power
• Data Rate Supported per Port: 10, 100 & 1,000 Mbps
• Bus Type: PCI Express x1 (2.5 GT/s)
• Bus Width: x1 lane PCI Express operable in x1, x4, x8, x16 slots
• Bus Speed (x1, encoded rate): 2.5 Gbps uni-directional; 5 Gbps bi-directional
• Connectors: RJ-45*1
• IEEE Support: IEEE802.1p IEEE802.2 IEEE802.3ac, IEEE802.3az, IEEE802.3x, IEEE802.3z, IEEE802.3ad
• LED Indicators: LINK/ACTIVITY

Adapter Specifications:

• Speed     1Gbps
• Connector     RJ45
• Ports     Single
• Controller     Intel® 82574L
• Slot Type     PCI Express x1 (2.5 GT/s)
• Slot Height     Full height
• Working temperature     0-55°C
• Working humidity     10-90%
• Storage temperature     -20-60°C
• Store humidity     10-80%

Fully Compatible with the latest Microsoft Windows OS

• Windows 11 10 8.1 8 7
